S-Series Blast Cabinet (48″ X 36″ X 40″)
Dropshipped
This item is dropshipped directly from the manufacturer or vendor.
Lead Time: Call For Shipping Times.

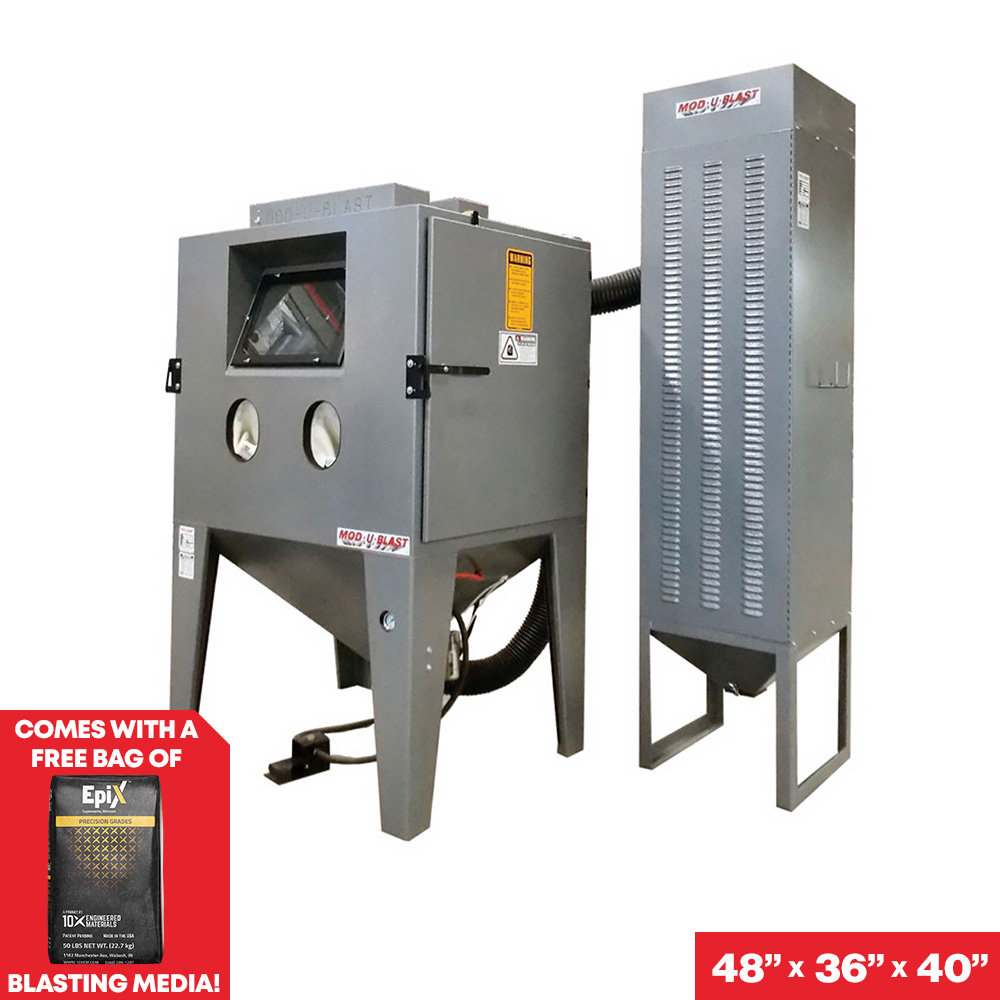

S-Series Blast Cabinet (48″ x 36″ x 40″)
Includes a Free 50 Lb. bag of Epix 10X MP 70/100 blasting media.
PERFORMANCE
Designed to handle a wide range of abrasives and peening medias, we can recommend a Mod-U-Blast® system to manage virtually any blast cleaning application
Our method of manufacturing also allows us to produce dual-station systems in many sizes for larger applications. All machines with 48” of depth or more require 600 CFM reclaimers and come standard with a dual-fixture lighting system (4 x 24” fluorescent tubes)
INTERNAL CHAMBER SIZE:
30″ W x 26″ D x 40″ H
EFFICIENCY
MEDIA RECLAIMER:
Engineered and designed to precision, the Mod-U-Blast® tunable media reclaimer is unequalled in performance. Separation of the blast media, oversized foreign matter, and dust becomes as accurate as possible in a cyclone-type reclaim system. Equipped with replaceable wear plate.
Available as an upgrade kit for cabinets without reclaimers.
Cabinet work area determines reclaimer size.
STANDARD FEATURES
- 14 gauge steel construction
- Pistol grip blast gun
- Natural rubber vinyl gloves
- Air blow-off gun
- Perforated steel flooring
- 1/2″ rugged brass/steel foot valve
- Cabinets are 100% modular and upgradeable
- Moisture separator, regulator, gauge, control panel
- External lighting system (LED)
- Safety glass – throughout
- Powder coated for durability
- Easy change safety glass window
- Overlapping positive tension doors
- Replaceable reclaim wearplate
- Adjustable air intakes for clear visibility
- Safety door shut-offs
